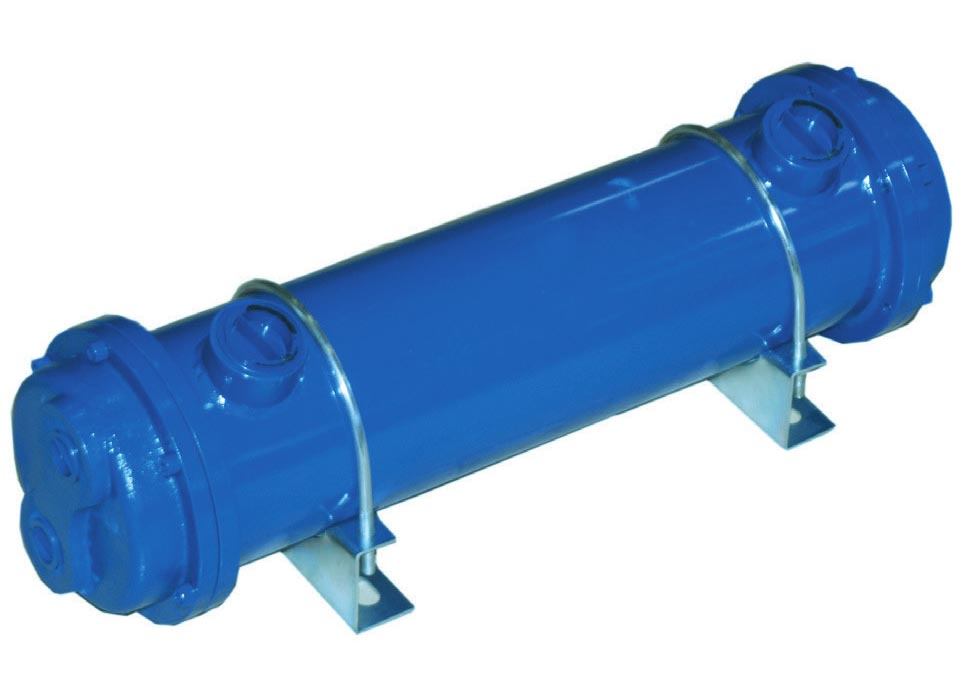

| Sulu Soğutucular | Δt = 20 ºC'de soğutma (kcal/saat) |
Δt = 30 ºC'de soğutma (kcal/saat) |
Maks.Yağ Debisi (lt/dk) |
Maks. Basınç (bar) |
Yağ Bağlantı Ölçüsü |
| TK - 60 L | 4.200 | 7.000 | 60 | 10 | 3/4" - 3/4" |
| TK - 100 L | 7.500 | 12.000 | 100 | 10 | 3/4" - 3/4" |
| TK - 150 L | 12.000 | 19.000 | 150 | 10 | 11/4" - 3/4" |
| TK - 250 L | 18.000 | 30.000 | 250 | 10 | 11/4" - 3/4" |
| TK - 350 L | 24.000 | 40.000 | 350 | 10 | 11/4" - 3/4" |
| TK - 600 L | 42.000 | 62.000 | 600 | 10 | 2" - 11/2" |
| TK - 800 L | 60.000 | 90.000 | 800 | 10 | 2" - 11/2" |
| TK - 1000 L | 75.000 | 105.000 | 1000 | 10 | 2" - 11/2" |
| TK - 1200 L | 95.000 | 125.000 | 1200 | 10 | 2" - 11/2" |
| MODEL | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
Boru Sayısı | Akış (lt/dk) |
Ağırlık (kg) |
| TK - 60 L | 405 | 295 | 40 | 89,10 | 120 | 3/4" | 3/4" | 22 | 60 | 8 |
| TK - 100 L | 540 | 370 | 55 | 114,30 | 140 | 3/4" | 3/4" | 26 | 100 | 12 |
| TK - 150 L | 580 | 375 | 65 | 139,80 | 170 | 11/4" | 3/4" | 42 | 150 | 15 |
| TK - 250 L | 800 | 600 | 65 | 139,80 | 170 | 11/4" | 3/4" | 58 | 250 | 22 |
| TK - 350 L | 1205 | 1000 | 65 | 139,80 | 170 | 11/4" | 3/4" | 58 | 350 | 30 |
| TK - 600 L | 1225 | 970 | 85 | 165,20 | 196 | 2" | 1 1/2" | 58 | 600 | 40 |
| TK - 800 L | 1725 | 1470 | 85 | 165,20 | 196 | 2" | 1 1/2" | 58 | 800 | 50 |
| TK - 1000 L | 2140 | 1890 | 85 | 165,20 | 196 | 2" | 1 1/2" | 58 | 1000 | 60 |
| TK - 1200 L | 2520 | 2270 | 85 | 165,20 | 196 | 2" | 1 1/2" | 58 | 1200 | 70 |
